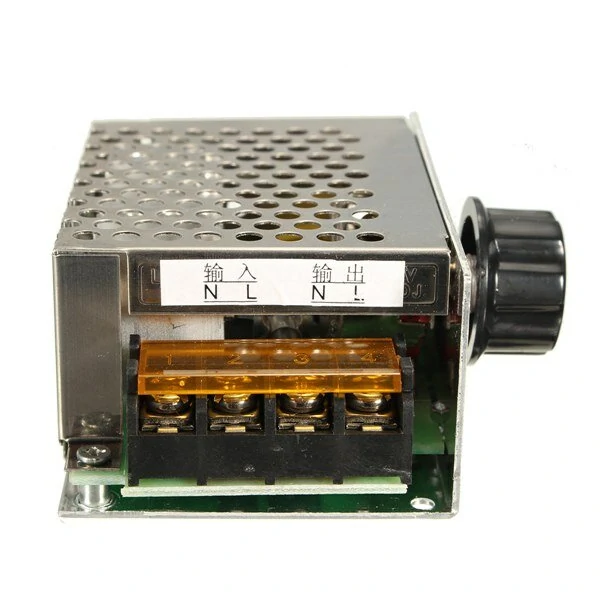

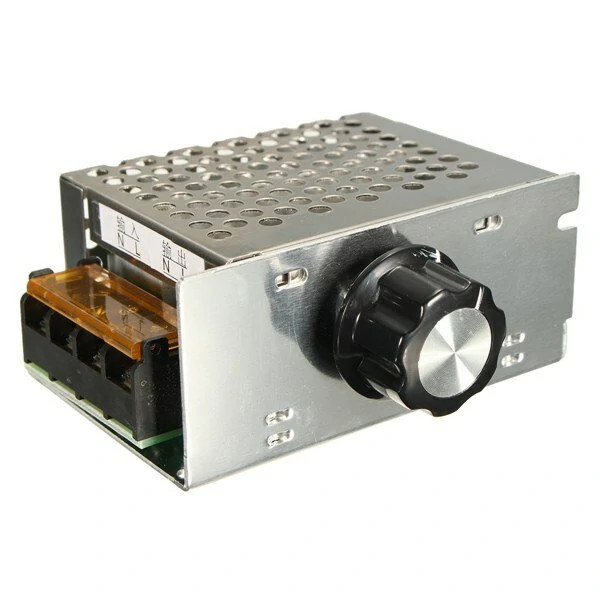

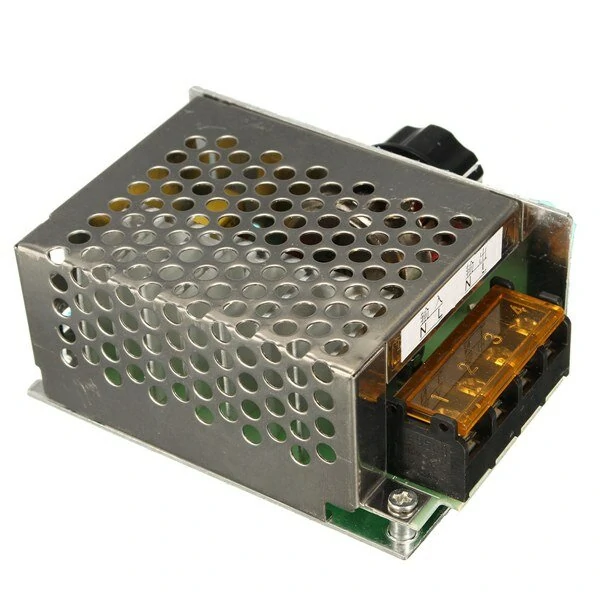

AC 220V 4000W SCR Voltage Regulator Dimmer Electronic Motor Speed Controller
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
56% Off — you save ₹1,396 on this product!
Features:
This controller uses novel bi-directional high-power SCR.
It can be very convenient adjust the current up to 25A, and solve the over current problem of the heating wire.
The output voltage is adjusted anywhere between 0V ~ 220V for use with electrical appliances.
It can use to such as electric stove, water heater tune thermal, lighting dimmer, small motor speed, electric iron thermostat, and achieve dimming, thermostats, pressure regulator effect.
Attention:
Load does not exceed the maximum power, otherwise it will burn module and electrical appliances;
use the resistive load as far as possible; reduce inductive and capacitive load power greatly. (it is best to leave more than half of them)
Specifications:
Working Voltage: AC 220V
Maximum Power: 4000W (connected resistive load)
Voltage Regulation:AC 0-220V,Start from AC 10V
Dimensions: 89(L) x 59(W) x38(H)MM/3.35x2.56x1.5"
Protection: Anti-spike, Surge, RC absorption (EOC)
Using Method:
Step 1: Adjustable Power Supply Board.
Step 2: connect this device with lamp or home appliance or electric circuit.
Step 3: then rotate the knob for dimming, speed, voltage, temperature control.
Package includes:
1 x High-power 4000W Voltage Regulator
