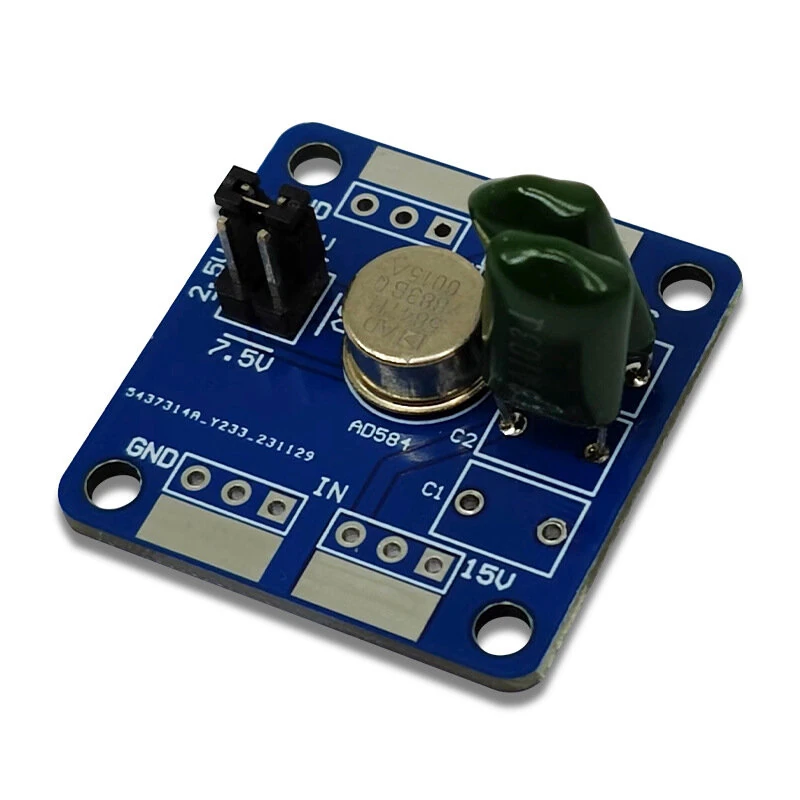

AD584 Voltage Reference Module High-precision 2.5V/5V/7.5V/10V Four Precision Voltage Outputs

Description:
The voltage reference module is developed based on AD584TH/88B3, with an input voltage of 12V-15V. By connecting different pin headers through jumper caps, it can output high-precision voltages of 2.5V, 5V, 7.5V, and 10V respectively. This module can help users provide accurate voltage support during product development.

Specification:
Product Name: Voltage Reference Module
Input Voltage: 12V-15V DC
Output Voltage Modes: 2.5V, 5V, 7.5V, 10V (adjustable through jumper wires)
Product Dimensions: 30mm x 30mm
Weight: 5 grams

Features:
1. Offers four different precise output voltage modes: 2.5V, 5V, 7.5V, and 10V.
2. Compatible with input voltage range from 12V to 15V DC for ease of use in various applications.
3. Designed with the AD584TH/88B3 chip for high-accuracy voltage output.
4. Compact size (30mm x 30mm) makes it suitable for tight spaces and portable setups.
5. Simple circuit design ensures reliable functionality and straightforward integration with your project.

Package Includes:
1x Voltage Reference Module
1x Single Row Pin (12-pin)
