M5Stack Stamp-AddOn C6 for P4 Module Wi-Fi Expansion Module ESP32-C6-MINI-1-N4 4MB Flash 2.4GHz Wi-Fi 6 SDIO Interface For Stamp-P4

SoC: ESP32-C6FH4 (RISC-V 32-bit single-core processor 160 MHz + RISC-V 32-bit single-core low-power co-processor 20 MHz)

Flash: 4MB

DC-DC: SY8089AAAC

Input Voltage: DC 5V

Module Resource Interface: SDIO

SDIO Interface Specification: HC-PBB40C-20DP-0.4V-02

Adapted Device: Stamp-P4

Wireless Protocol: 2.4GHz Wi-Fi 6

Operating Temperature: 0 ~ 40°C

Product Size: 27.0 x 18.0 x 4.0mm

Product Weight: 1.6g

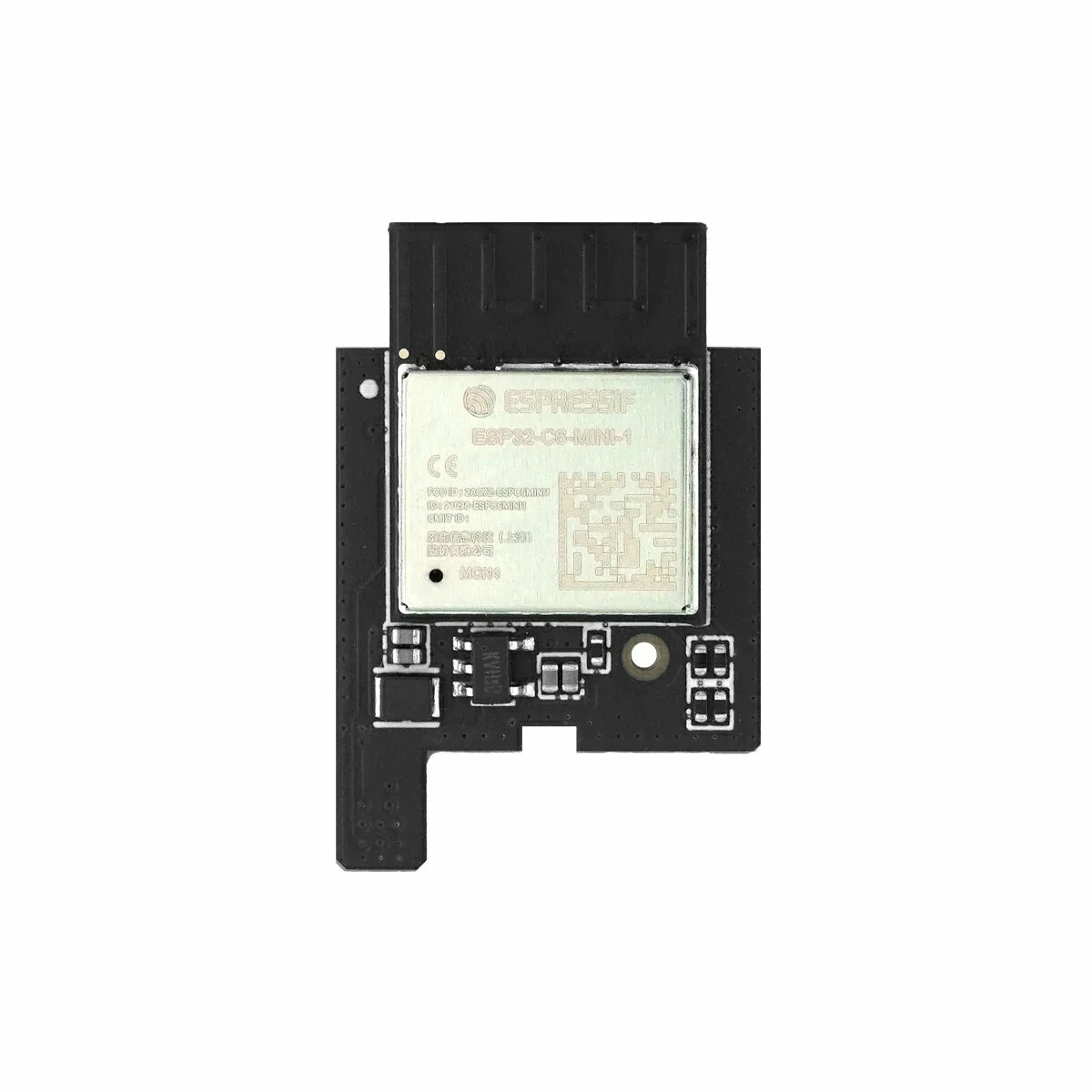

Introduction: Stamp-AddOn C6 For P4 is a Wi-Fi expansion module based on the ESP32-C6-MINI-1-N4, specifically designed to extend the wireless communication capabilities of the ESP32-P4 series modules, supporting 2.4GHz Wi-Fi 6. The module communicates at high speed with Stamp-P4 via the onboard SDIO interface, quickly expanding high-performance wireless connectivity. It is suitable for scenarios such as smart security gateways, industrial HMI interactive terminals, and complex edge AI nodes, helping developers efficiently build embedded products with full connectivity capabilities.

1. Based on the ESP32-C6-MINI-1-N4 core controller for wireless expansion of ESP32-P4 series modules.

2. Supports 2.4GHz Wi-Fi 6 to extend wireless communication capability for connected embedded applications.

3. Communicates with Stamp-P4 through the onboard SDIO interface for high-speed data transfer.

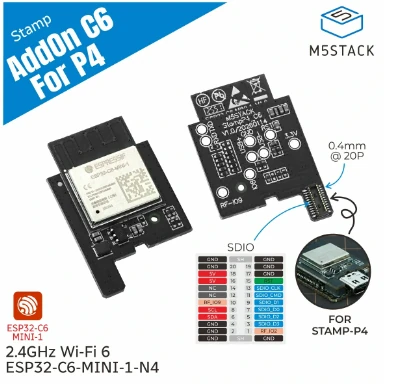

4. Features a 0.4mm@20P SDIO onboard interface adapted for Stamp-P4 integration.

5. Supports UiFlow2 and Arduinos IDE for flexible development and application building.

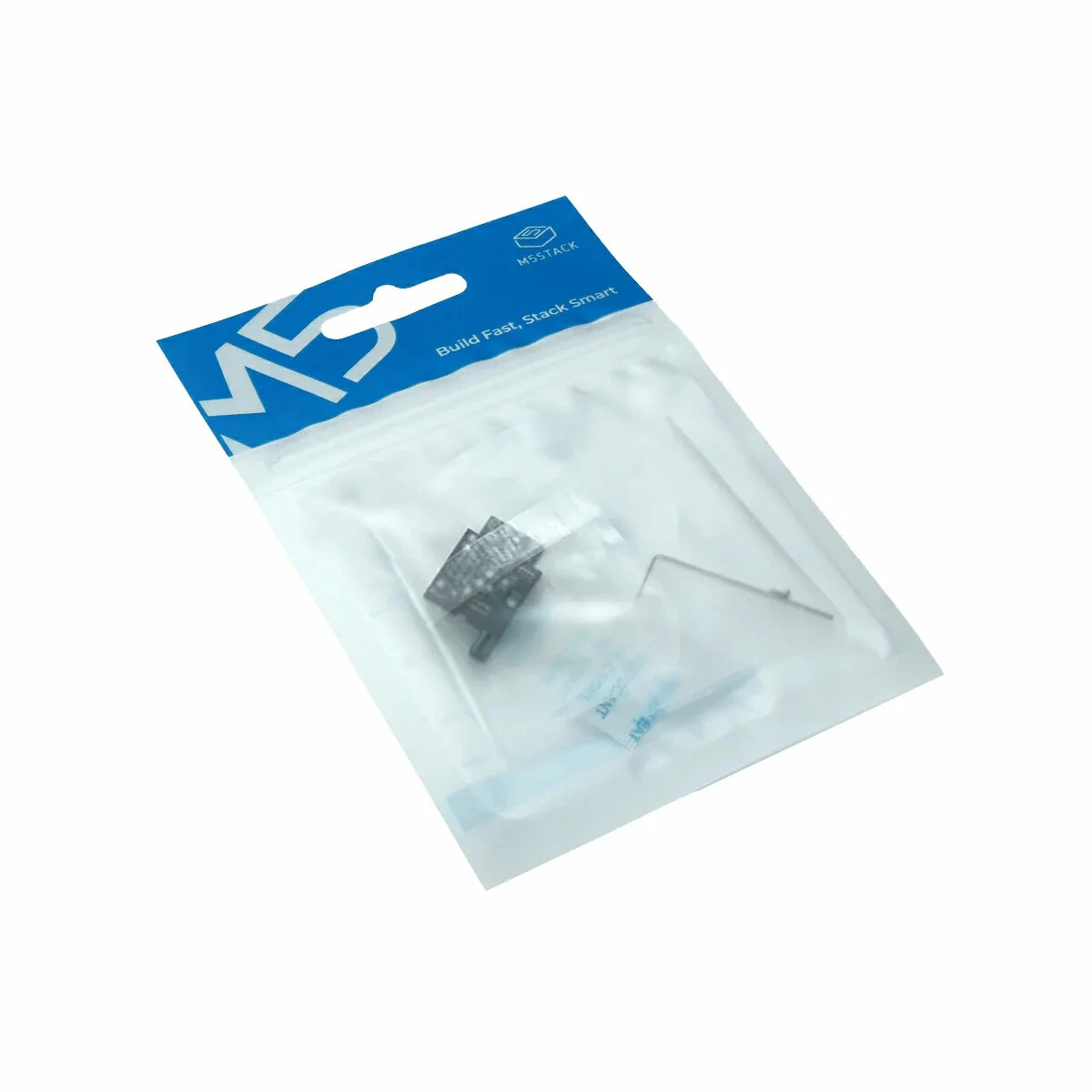

1 x Stamp-AddOn C6 For P4
