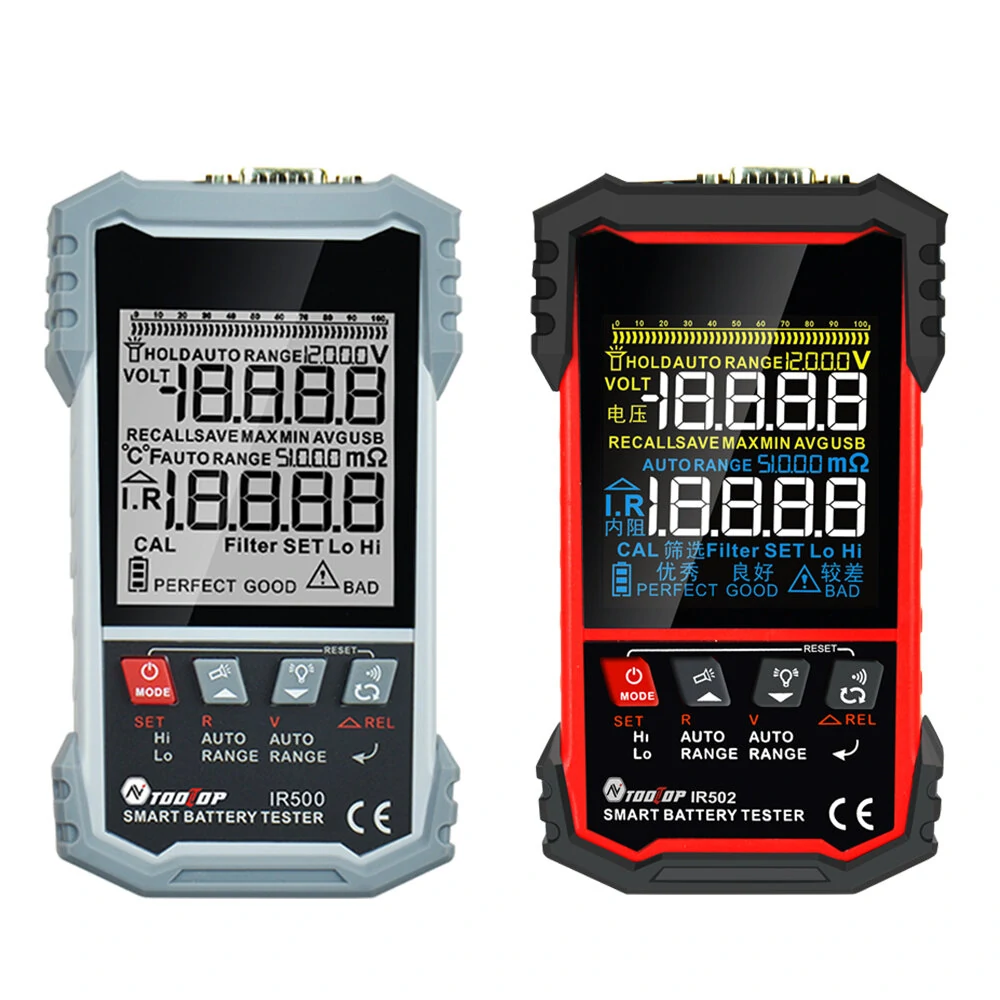

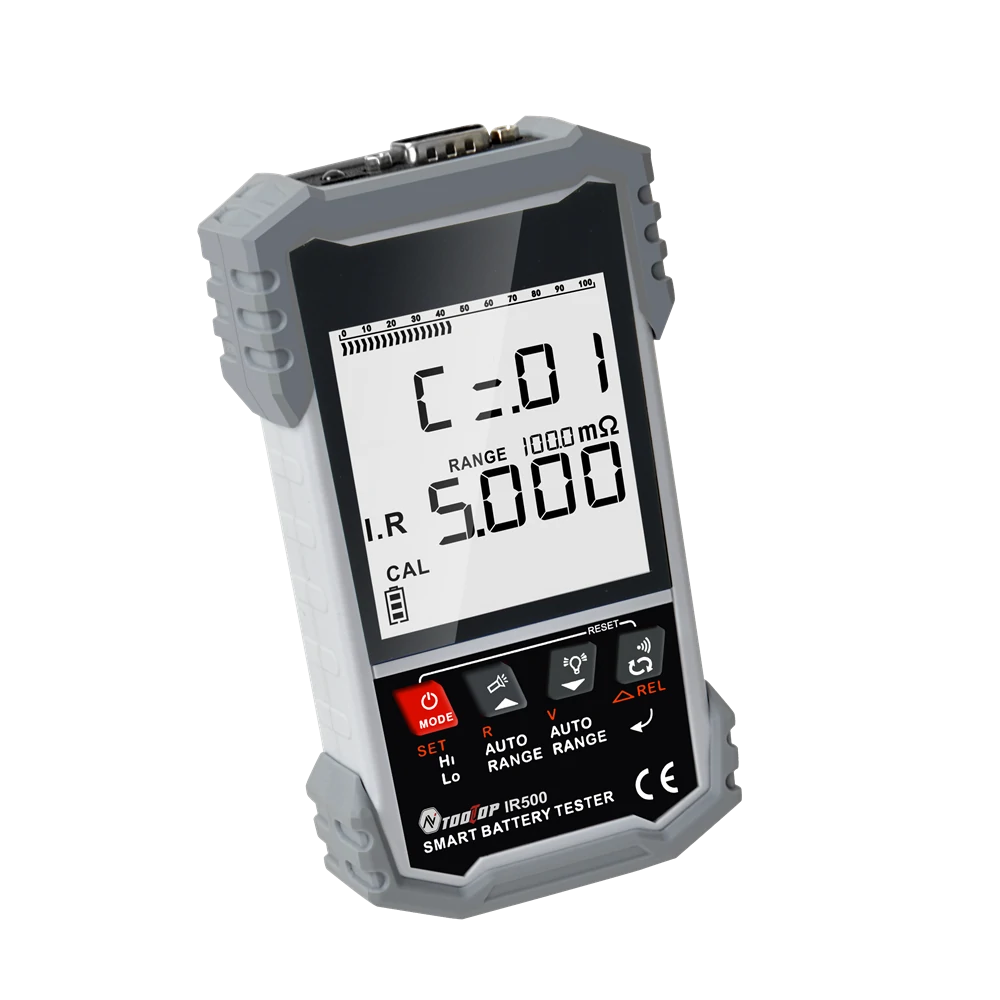

MUSTOOL IR502/IR500 ±120V 500Ω Battery Internal Resistance Tester 4-Wire Kelvin Test Lead-acid Lithium Nickel-cadmium Batteries Tool
5.013 ratingsThe MUSTOOL IR502/IR500 ±120V 500Ω Battery Internal Resistance Tester 4-Wire Kelvin Test Lead-acid Lithium Nickel-cadmium Batteries Tool by AV TOOLTOP is a mid-range product designed for DIY enthusiasts and makers. Customers praise its easy to set up and use and excellent build quality. 100% of buyers rate it 4★ or above.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
51% Off — you save ₹4,734 on this product!
Price: ₹4,572
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The MUSTOOL IR502/IR500 ±120V 500Ω Battery Internal Resistance Tester 4-Wire Kelvin Test Lead-acid Lithium Nickel-cadmium Batteries Tool by AV TOOLTOP is a mid-range designed for DIY enthusiasts and makers. Customers highlight its easy to set up and use and excellent build quality.
Customer Verdict
100% of buyers rated this product 4 stars or above. The most appreciated qualities are: easy to set up and use, excellent build quality, fast and responsive, clear and bright display.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
IR502/IR500 ±120V 500Ω Battery Internal Resistance Tester 4-Wire Kelvin Test Lead-acid Lithium Nickel-cadmium Batteries Tool
Features:
Wider measurement range: ±120V battery voltage, 500Ω battery internal resistance measurement and can test more types of batteries, including lead-acid batteries, lithium batteries, nickel-cadmium batteries, alkaline batteries, etc.
6 Resistance Range Automatic Switching function, which can automatically adapt to the resistance range of different batteries, making it convenient for users to test.
3.2 Large-screen: it can display the main and secondary dual-digit readings at the same time, allowing users to understand the test results more clearly.
It has user self-calibration function to ensure high precision and accuracy of test results.
The device is equipped with a backlight display and LED flashlight lighting function, allowing users to operate easily in dim environments.
Powered by 1200mAH lithium battery, it is economical, environmentally friendly and practical, providing users with long-term use and convenience.
Brand: AV TOOLTOP
Model: IR500/IR502
Voltage: 0.00V~±120V
Internal Resistance Measurement: 0.000mΩ~500Ω
Maximum InputVoltage：DC120V (non polarized), cannot input AC
Measuring Current: 50mA~50uAAC
Measurement Speed: 3 times/second
Measure Signal Frequency: 1KHz
Voltage Range Selection: Automatic/manual selection
Selection Of Internal Resistance Range：Automatic/manual selection
Autonomous Connection Optiona: √
Measuring Method：Four line Kelvin testing method
User Self Calibration: √
Autonomous Factory Recovery: √
Battery Selection Criteria：Lead acid batteries, lithium batteries, nickelcadmium batteries, alkaline batteries, etc
Screen And Size:
55*57mm TN black and white screen(IR500)
55*57mm VA color screen(IR502)
Power Supply: 3.7V lithium battery
Lighting Function: √
Other Functions: Low voltage detection, white backlight automatic shutdown
Package included:
Type A: IR500
1 x IR500 Battery Tester
1 X English User Manual
1 x Charging Cable
1 x Color Package Box
Type B: IR502
1 x IR502 Battery Tester
1 X English User Manual
1 x Charging Cable
1 x Storage Cloth Bag
1 x Color Package Box
