RIDEN® DPS5020 Constant Voltage Current Step-down Communication Digital Power Supply Buck Voltage Converter LCD Voltmeter 50V 20A
5.0319 ratingsThe RIDEN® DPS5020 Constant Voltage Current Step-down Communication Digital Power Supply Buck Voltage Converter LCD Voltmeter 50V 20A by RIDEN is a premium product designed for everyday users. It features DPS3005-USB: DPS5005-USB and DPS3005-USB-BT: DPS5005-USB-BT. Customers praise its easy to set up and use and excellent build quality. 100% of buyers rate it 4★ or above.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Price: ₹5,366
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Quick Specs
Ideal For
About This Product
The RIDEN® DPS5020 Constant Voltage Current Step-down Communication Digital Power Supply Buck Voltage Converter LCD Voltmeter 50V 20A by RIDEN is a premium designed for everyday users. Customers highlight its easy to set up and use and excellent build quality.
Key Specifications
- DPS3005-USB: DPS5005-USB
- DPS3005-USB-BT: DPS5005-USB-BT
- Communication function: NO
- Working mode: Buck
- Input voltage: 6-55V — works with standard household power
- Output voltage: 0-50.00V — works with standard household power
- Output current: 0-5.000A
- Output power: 0-250W
Customer Verdict
100% of buyers rated this product 4 stars or above. The most appreciated qualities are: easy to set up and use, excellent build quality, great value for money, fast and responsive.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Information:

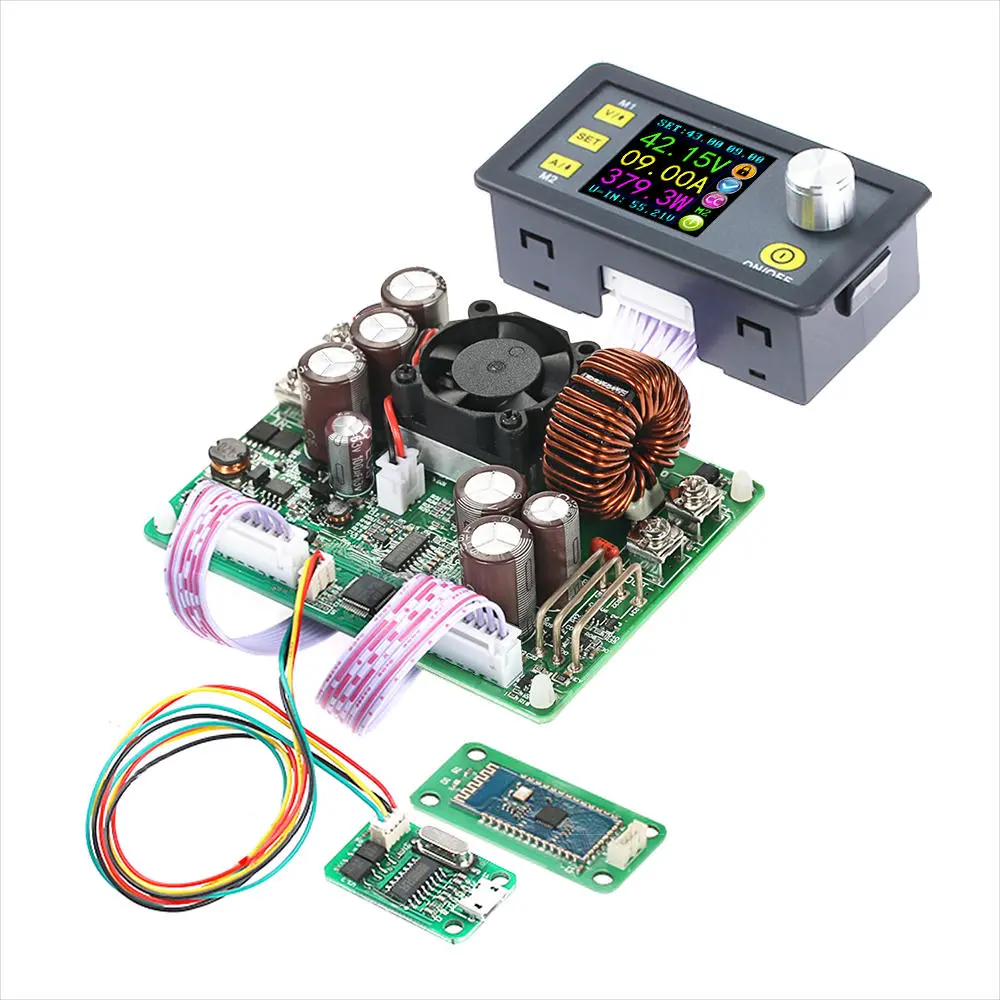

The constant voltage and constant current programmable control power supply module put the collection of analog integration and digital control functions in one. Its adjustable output voltage range is 0-50.00V, step by 0.01V. Its adjustable output current range is 0-20.00A, step by 0.01A. This module has power-down stored function and can store 10 groups preset value. And it also has the function of extracting quickly two groups stored value. Compared with the traditional analog power supply, it is more convenient to quickly extract the voltage or current required. LCD display on the module has the function digital voltmeter and ammeter. You can view the preset voltage, input voltage, output voltage, the preset current, output current, output power, etc. on the output state remind area, you can see that output opens or not, the state of constant voltage and constant current, output is normal or not, the key is locked or not, and the current data groups that is being used. On the setting data interface, you can adjust overvoltage value, overcurrent value, over-power value, data set and LCD brightness. This module has many advantages, small size, advanced function, good visual effect, high operability, high-preci sion, being used independently, being inset into the device and been widely applied.
Two version can select:

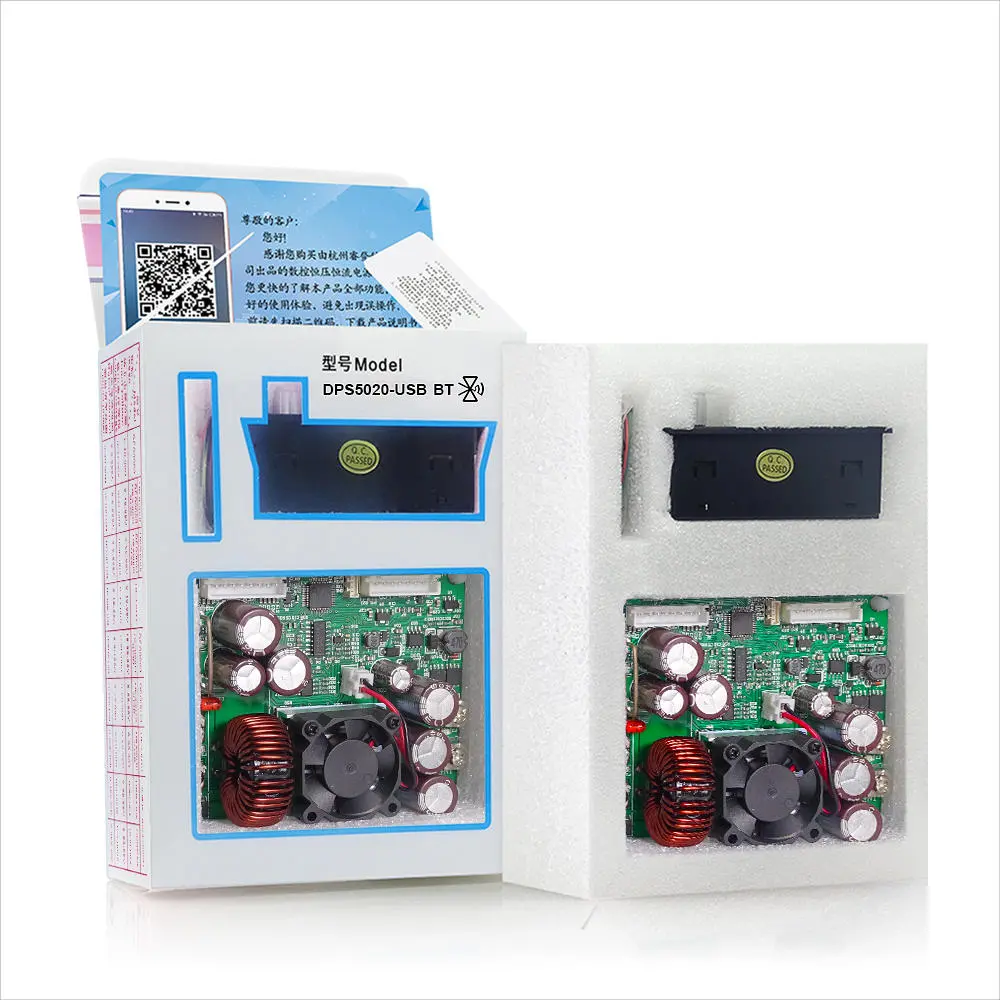

Type A: DPS5020 No Communication Version
Type B: DPS5020 Communication Version USB Board+bluetooth Board
Type C: DPS5020 Communication + USB version
Very important:
1. Before buying this product, please download the upper computer software and test, if it fits your computer , you can buy
2. The upper computer only support For Win7 and above.
3. This is file for upper computer installation and software, you can download:
https://www.mediafire.com/folder/3iogirsx1s0vp/DPS_communication_upper_computer
Technical parameters:
Input voltage range: 6.00-60.00V
Output voltage range: 0V-50.00V Output current: 0-20.00A
Output power range: 0-1000W
Product Weight: about 222g
Display module size: 79*43*41(mm) (L*W*H) Open size: 71mm*39mm
Power module size: 93*71*41(mm) (L*W*H) Length of connecting line: 200mm
Fixed hole center distance: 86mm, 64mm Output voltage resolution: 0.01V
Output current resolution: 0.01A
Output Voltage accuracy: ± (0.5% + 1 digit)
Output Current accuracy: ± (0.5% + 2 digits) NOTE: 1.You must make sure that the input voltage is 1.1 times higher than output voltage. Under large current circumstances, pay attention to heat elimination. 2. Connection between display part and power part should be according to the corresponding words. Otherwise it will not work by wrong connection
File download :
1, DPS5020 operation instruction, PC software and PC software instuction , android phone APP
Ａ: Main download link: http://www.mediafire.com/folder/xmaf7xw1coetq/DPS5020_file
B: Backup download linlk: https://drive.google.com/open?id=1nP9Vi6cgzv2zbxJG006256rYkz-R_jBL
2, PC software (only support For Win7 and above) download link http://www.mediafire.com/folder/xmaf7xw1coetq/DPS5020_file or https://drive.google.com/open?id=1nP9Vi6cgzv2zbxJG006256rYkz-R_jBL
3, APP download link :
Android phone APP (support android 5.0 and above): http://www.mediafire.com/folder/xmaf7xw1coetq/DPS5020_file
4, For 5020 USB BT CASE C2, that is DPS5020 USB BT and case suitable for DPS5020 USB BT,
The installation struction: (suitable for with power module part product): https://www.mediafire.com/folder/rsbgws8grh6zo/communication_metal_houing_with_power_board
and similar Installation video: https://www.youtube.com/watch?v=ENZg4yTjhnY&t=2s
5: Upper computer installation, connection by USB and Bluetooth video: https://www.youtube.com/watch?v=7BL6KmY4x-A&t=1s
Android phone APP video show: https://www.youtube.com/watch?v=mX1oO1a1nGs
