Adjustable RF Attenuator Module LF to 6GHz, 0 to 31.75dB OLED Display SMA Connector CNC Aluminum Alloy Housing

Name: Adjustable RF Attenuator Module LF to 6GHz, 0 to 31.75dB OLED Display SMA Connector CNC Aluminum Alloy Housing
Brand: Pricio
SKU: 2048803
Price: 3823 INR
Availability: InStock
Rating: 5.0 (1 reviews)

5.01 rating

396+ bought in past month

AI Summary

RF amplifier for everyday users

The Adjustable RF Attenuator Module LF to 6GHz, 0 to 31.75dB OLED Display SMA Connector CNC Aluminum Alloy Housing is a mid-range rf amplifier designed for everyday users.

₹3,823-32%

MRP:₹5,639Save ₹1,816

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

32% Off — you save ₹1,816 on this product!

Color: Green

Green

Quantity

Total: ₹3,823

Buying tip: A quality investment for dependable performance and premium build quality.

Estimated delivery: 17 Aug – 31 Aug

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience

SKU: bg-2048803Category: RF amplifier

About This Product

The Adjustable RF Attenuator Module LF to 6GHz, 0 to 31.75dB OLED Display SMA Connector CNC Aluminum Alloy Housing is a mid-range rf amplifier designed for everyday users. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:

Frequency Range: LF-6GHz

Attenuation Range: 0-31.75dB

Attenuation Step: 0.25dB

Voltage: DC 5V

Insertion Loss: ≤1.5dB (slightly higher at high frequencies)

VSWR: ≤1.4

Attenuation Accuracy: ±0.25dB Max

Power Rating: ≤1W

Connector Type: SMA (female, external thread, inner hole)

Operating Temperature: -10°C to +50°C

Storage Temperature: -40°C to +70°C

Dimensions: 55 x 40 x 16.5mm (excluding SMA connector protrusions, SMA protrusions: 9mm)

Weight: 57g

Impedance: 50 ohms

Features:

1. Compact design for ease of portability—ideal for testing and setup in various outdoor or indoor applications.

2. High-level precision with attenuation adjustment accuracy of ±0.25dB, ensuring reliable signal tuning and consistent performance.

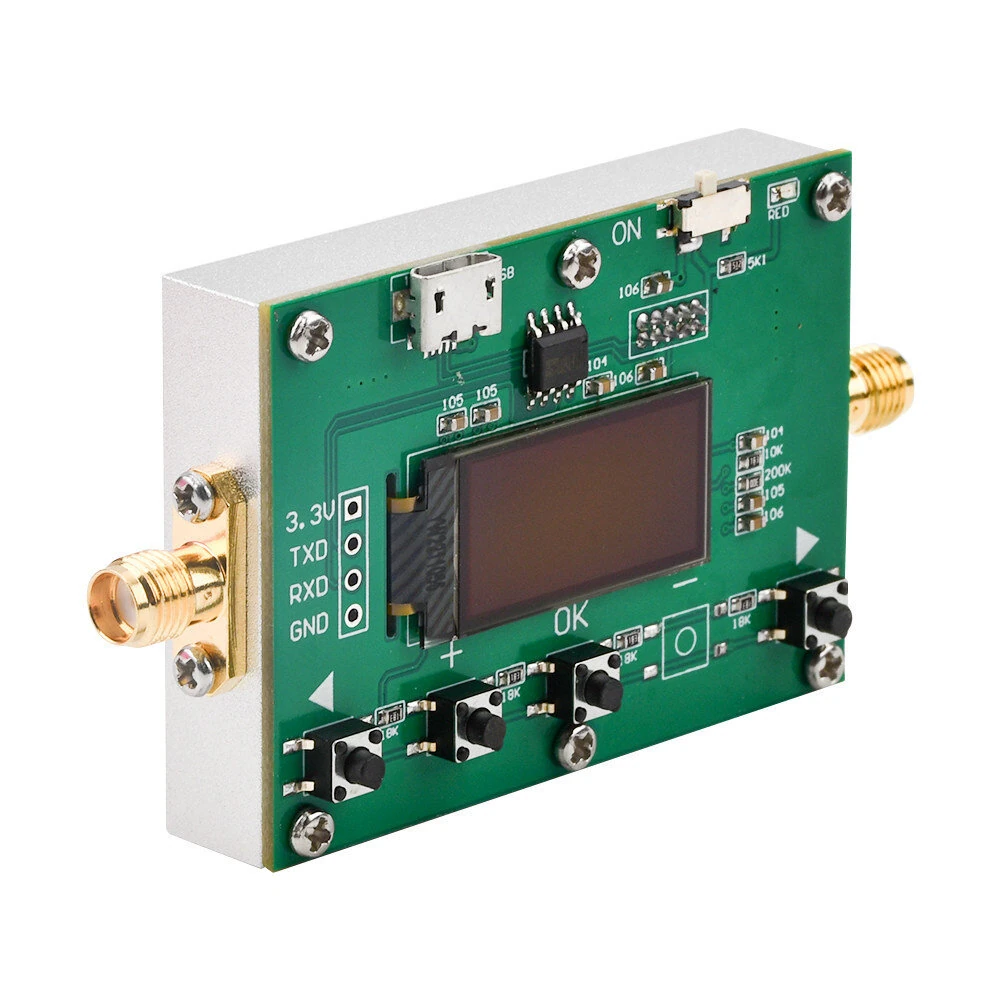

3. OLED display for clear visibility of attenuation levels, enabling user-friendly controls.

4. CNC aluminum alloy outer casing with modern aesthetics and excellent electromagnetic shielding.

5. Versatile 0.25dB incremental adjustment range, suitable for signal calibration in a broad frequency spectrum from LF to 6GHz.

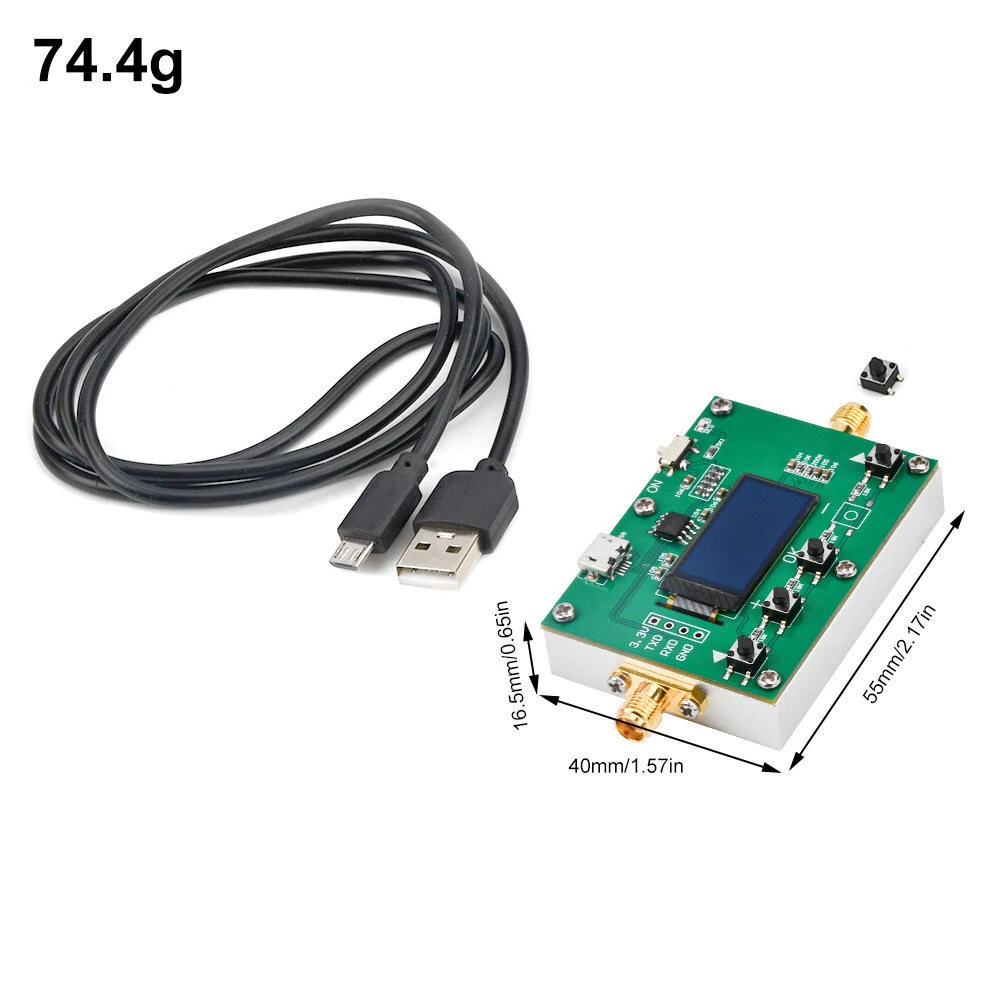

Package Included:

1 x RF Attenuator Module

1 x USB Cable

Product Safety Information

Setup Guide

Identify the pins

Locate VCC (power), GND (ground), and data pins (SDA/SCL for I2C, MOSI/MISO for SPI, or TX/RX for UART). Refer to the pinout diagram on the product page.

Wire to your microcontroller

Connect VCC to 3.3V or 5V (check the module spec), GND to GND, and data pins to the appropriate GPIO pins on your Arduino or Raspberry Pi.

Install libraries

In Arduino IDE, go to Sketch → Include Library → Manage Libraries and search for the sensor library. Install the recommended version.

Upload example sketch

Open File → Examples → [library name] → Basic Example. Upload to your board and open Serial Monitor to view output.

Calibrate if needed

Some sensors (temperature, humidity, distance) may need a short warm-up period or calibration. Run the calibration sketch if provided.
