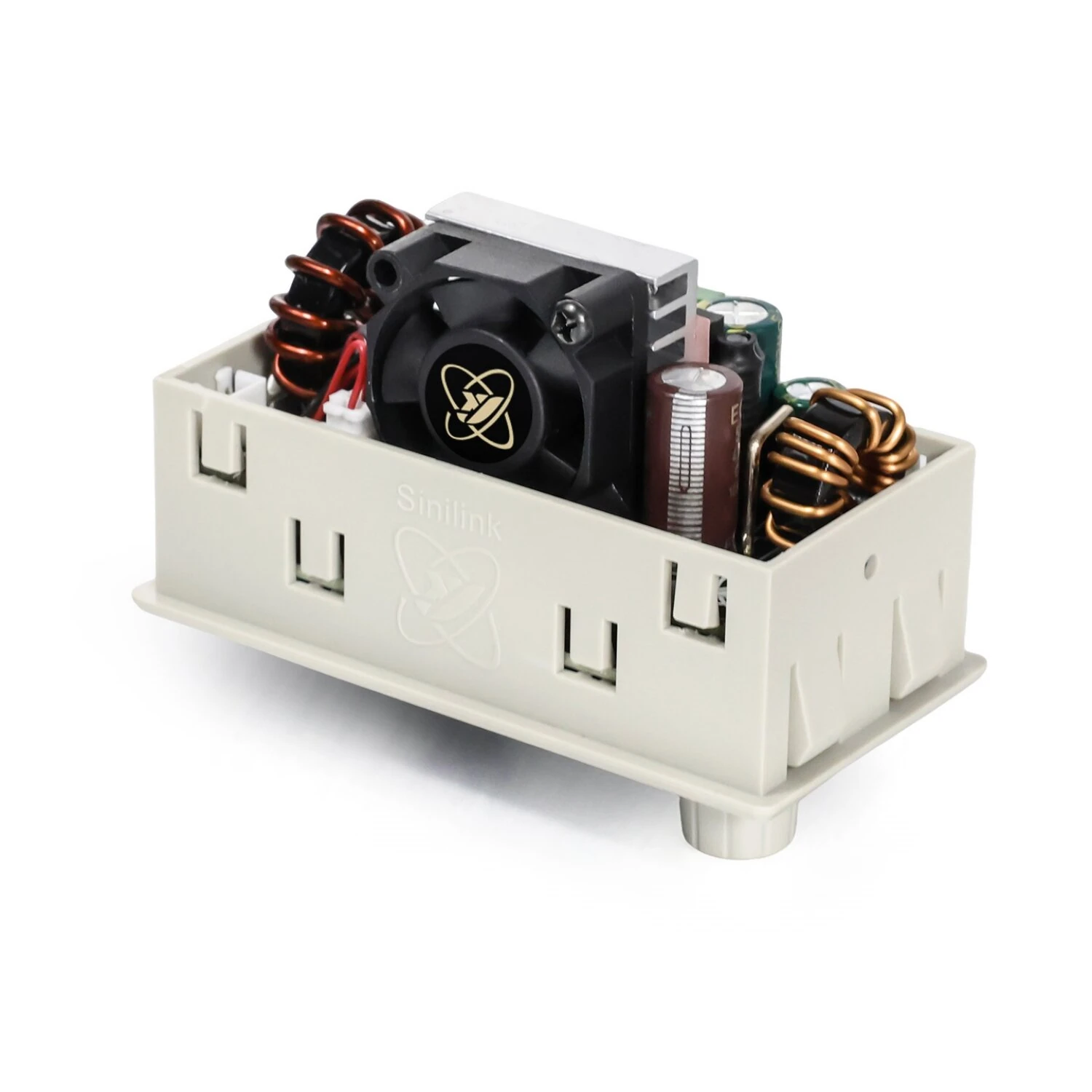

Sinilink XY-SK180X DC Buck Boost Power Supply Module 40V 180W High-Precision Smart Solar Charging MPPT with 1.8 Inch LCD Display
The Sinilink XY-SK180X DC Buck Boost Power Supply Module 40V 180W High-Precision Smart Solar Charging MPPT with 1.8 Inch LCD Display is a mid-range power supply module designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
33% Off — you save ₹1,835 on this product!
Price: ₹3,804
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The Sinilink XY-SK180X DC Buck Boost Power Supply Module 40V 180W High-Precision Smart Solar Charging MPPT with 1.8 Inch LCD Display is a mid-range power supply module designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification:
Brand: Sinilink
Product Name: XY-SK180X DC Buck-Boost Programmable Power Supply Module
Input voltage: 6.0–36.0 V DC
Output voltage: 0.0–40.0 V DC (step 0.01 V, accuracy ±0.5%+1 digit)
Output current: 0.0–9.000 A (step 0.001 A, accuracy ±0.5%+3 digits)
Maximum output power: 180 W
Operating modes: Constant Voltage (CV) / Constant Current (CC) / Constant Power (CW)
Conversion efficiency: approx. 88%
Ripple (typical): ≤150 mV (Vpp)
Data storage: 10 groups (Cd0–Cd9)
Screen: >1.8" full-view VA color LCD, display area 38 × 29 mm
Protection functions:
Reverse polarity (input)
Reverse current (anti-backflow)
Hardware input overcurrent (fixed 13 A)
LVP, OVP, OCP, OPP, OTP, OHP, OAH, OWH, ETP (fully adjustable)
Soft start: Yes
Communication: Serial port (XH1.25-4P), supports standard Modbus protocol
MPPT: Supports MPPT solar charging
External NTC interface: 10 kΩ 3950 NTC temperature probe (optional)
Buzzer: Built-in (key tone + alarm)
Controller: 48‑pin MCU, 64 MHz external crystal
Cooling: Intelligent temperature-controlled fan + large-area heatsink
Terminals: Plug-in screw terminals: VIN+/VIN–, OUT+/OUT–
Shell material: Flame-retardant integrated housing, double-buckle board fixation
Product size: 86 × 50 × 45mm (front panel opening approx. 81.6 × 40.6 mm)
Net weight: about 108–124g (depending on version)
Features:
1. High-precision programmable output: Fine 0.01 V / 0.001 A adjustment, with CV/CC/CW modes and 10 storable parameter groups for fast recall.
2. All-angle color LCD: Large VA display simultaneously shows voltage, current, power, capacity, energy, time and temperature with clear multi-color fonts.
3. Comprehensive protection suite: Built-in input reverse, reverse current, over-voltage, over-current, over-power, multiple over-temperature and overtime protections with alarm prompts.
4. Smart charging & MPPT: Supports MPPT solar input, anti-backflow charging for various batteries and external NTC temperature probe for thermal cut-off.
5. PC/Cloud connectivity: Serial Modbus interface works with optional WiFi/485/433 modules for remote control, batch control software, cloud logging and email notification.
6. User-friendly control panel: Silicone keys with indicator lights, encoder knob for quick setting, key-lock function, adjustable LCD brightness and firmware upgrade via WiFi module.
Package Includes:
1 x XY-SK180X DC Buck-Boost Power Supply Module
