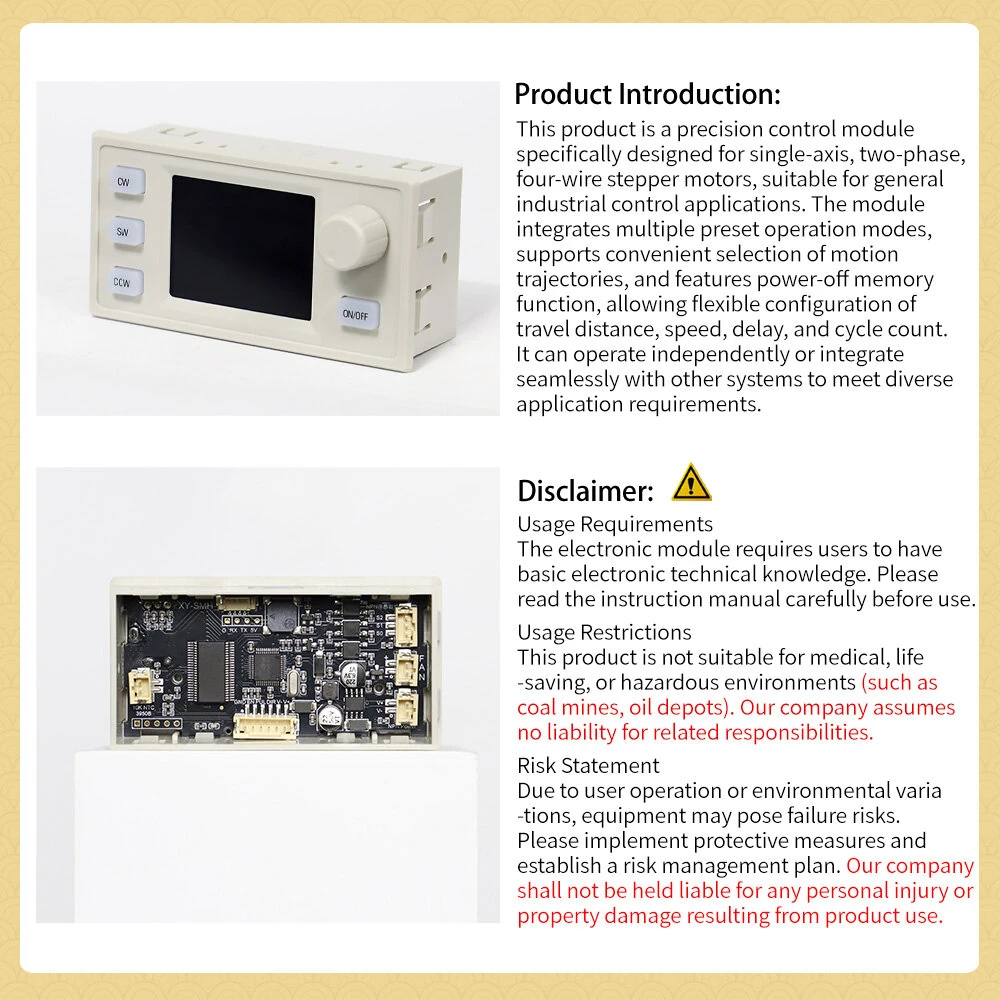

Sinilink XY-SMH Single Axis Stepper Motor Controller DC 6V-36V TTL Serial MODBUS 80000Hz Pulse Frequency Manual Automatic Speed Regulation Forward and Reverse Pulse Delay Positioning Angle PLC
₹1,247-37%
MRP:₹1,973Save ₹726
Free Shipping💵 COD Available
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
37% Off — you save ₹726 on this product!
Color: White
White
Total: ₹1,247
Specifications:
Brand: Sinilink
Product Name: Single-Axis Stepper Motor Controller
Model Number: XY-SMH
Control Axes: Single-axis
Motor Signal Type: Common Cathode
Power Supply Range: DC 6V~36V
Acceleration/Deceleration Control: YES
Reverse Connection Protection: YES
Over-Temperature Protection: YES
Cooling System: Self-installed cooling fan; activates at 55°C and stops below 50°C
Communication Interface: TTL Serial (Standard MODBUS Protocol)
Functions: Auto, Manual, Setup, Serial Control
Pulse Frequency Range: 100Hz~80000Hz
Speed Class: 0~1000
Travel Limits: Forward/Reverse up to 9999.999mm
Cycle Operation Count: 1~9999 (supports infinite loops)
CW/CCW Delay: 0.000~9999.000s
Operating Temperature: -5°C~60°C (Non-condensing)
Product Dimensions (mm): 86x28x45
Weight: Net Weight: 51g
Features:
1. Wide Voltage Range Compatibility: Operates seamlessly within a versatile DC 6V~36V input range for broader application adaptability.
2. Enhanced Safety Functions: Integrated reverse connection and over-temperature protections ensure consistent performance and protection against technical errors.
3. High Precision Control: Offers pulse frequency support ranging from 100Hz to an impressive 80000Hz, enabling fine motor adjustments for sensitive applications.
4. Customizable Functionality: Features auto, manual, setup, and serial control modes for flexible integration into various system designs.
5. Efficient Cooling Performance: Equipped with a self-installed cooling fan mechanism, which activates at 55°C and automatically halts below 50°C to optimize performance.
Package Included:
1 x Sinilink XY-SMH Single-Axis Stepper Motor Controller
